FF67R37DM71S4詳細信息
FF67R37DM71S4
關鍵詞：1.1KW電機能配多大平行軸齒輪減速電機_FF67R37DM71S4_FF67R37DRS80MK4
FF67R37DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF67R37DM71S4 | 572 | 0.25KW | 2.30r/min | 930N.m | 73.5kg | 9150N | 0.90 |
| FF67R37DM71S4 | 509 | 0.25KW | 2.60r/min | 810N.m | 73.5kg | 10400N | 1.00 |
| FF67R37DM71S4 | 437 | 0.25KW | 3.00r/min | 700N.m | 73.5kg | 11200N | 1.15 |
| FF67R37DM71S4 | 500 | 0.25KW | 2.60r/min | 830N.m | 73.5kg | 10200N | 1.00 |
| FF67R37DM71S4 | 454 | 0.25KW | 2.90r/min | 755N.m | 73.5kg | 10800N | 1.10 |
| FF67R37DM71S4 | 392 | 0.25KW | 3.30r/min | 650N.m | 73.5kg | 11600N | 1.25 |
| FF67R37DM71S4 | 333 | 0.25KW | 3.90r/min | 550N.m | 73.5kg | 12200N | 1.50 |
| FF67R37DM71S4 | 297 | 0.25KW | 4.40r/min | 485N.m | 73.5kg | 12500N | 1.70 |
| FF67R37DM71S4 | 261 | 0.25KW | 5.00r/min | 425N.m | 73.5kg | 12700N | 1.90 |
| FF67R37DM71S4 | 238 | 0.25KW | 5.50r/min | 385N.m | 73.5kg | 12900N | 2.10 |
FF67R37DRS80MK4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF67R37DRS80MK4 | 257 | 0.55KW | 5.40r/min | 890N.m | 78.5kg | 9610N | 0.90 |
| FF67R37DRS80MK4 | 231 | 0.55KW | 6.00r/min | 790N.m | 78.5kg | 10500N | 1.05 |
| FF67R37DRS80MK4 | 205 | 0.55KW | 6.70r/min | 705N.m | 78.5kg | 11200N | 1.15 |
| FF67R37DRS80MK4 | 175 | 0.55KW | 7.90r/min | 600N.m | 78.5kg | 11900N | 1.35 |
FF67R37DM71S4減速機電動機類型：
F67R37DM71S4底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA67BR37DM71S4底腳空心軸安裝平行軸—斜齒輪減速機
FV67BR37DM71S4底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA67R37DM71S4空心軸安裝平行軸—斜齒輪減速機
FV67R37DM71S4花鍵空心軸安裝平行軸—斜齒輪減速機
FAF67R37DM71S4是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF67R37DM71S4是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ67R37DM71S4是B14法蘭安裝平行軸—斜齒輪減速機
FVZ67R37DM71S4是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF67R37DM71S4是B5法蘭安裝平行軸—斜齒輪減速機
FH67BR37DM71S4底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH67R37DM71S4是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF67R37DM71S4是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ67R37DM71S4是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

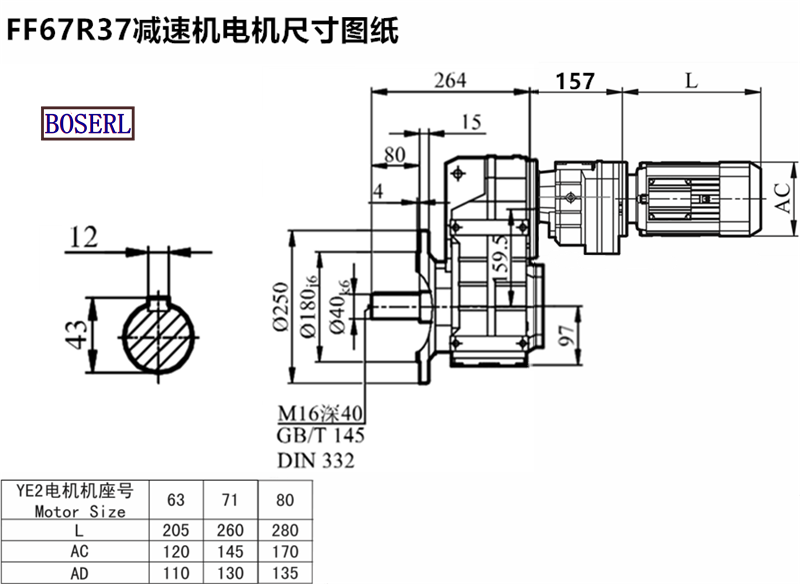

FF67R37DM71S4減速機電動機安裝尺寸圖紙
FF67R37DM71S4減速機電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 1.1KW電機能配多大平行軸齒輪減速電機 FF67R37DM71S4 FF67R37DRS80MK4
