KAF87DRN132MC4詳細信息
KAF87DRN132MC4
關鍵詞：旋轉96噸負載電機減速機_KAF87DRN132MC4_KAF87DRN132ML4
KAF87DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KAF87DRN132MC4 | 86.34 | 5.5KW | 17rpm | 3130N.m | 135Kg | 26700N | 0.85 |
| KAF87DRN132MC4 | 79.34 | 5.5KW | 18rpm | 2880N.m | 135Kg | 27000N | 0.95 |
| KAF87DRN132MC4 | 70.46 | 5.5KW | 21rpm | 2560N.m | 135Kg | 27500N | 1.05 |
| KAF87DRN132MC4 | 63 | 5.5KW | 23rpm | 2280N.m | 135Kg | 27400N | 1.2 |
| KAF87DRN132MC4 | 56.64 | 5.5KW | 26rpm | 2050N.m | 135Kg | 27200N | 1.3 |
| KAF87DRN132MC4 | 49.16 | 5.5KW | 29rpm | 1780N.m | 135Kg | 26800N | 1.5 |
| KAF87DRN132MC4 | 44.02 | 5.5KW | 33rpm | 1600N.m | 135Kg | 26500N | 1.6 |
| KAF87DRN132MC4 | 36.52 | 5.5KW | 40rpm | 1320N.m | 135Kg | 25800N | 1.9 |
| KAF87DRN132MC4 | 31.39 | 5.5KW | 46rpm | 1140N.m | 135Kg | 25200N | 2.4 |
| KAF87DRN132MC4 | 27.88 | 5.5KW | 52rpm | 1010N.m | 135Kg | 24600N | 2.6 |
KAF87DRN132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KAF87DRN132ML4 | 86.34 | 5.5KW | 17rpm | 3130N.m | 135Kg | 26700N | 0.85 |
| KAF87DRN132ML4 | 79.34 | 5.5KW | 18rpm | 2880N.m | 135Kg | 27000N | 0.95 |
| KAF87DRN132ML4 | 70.46 | 5.5KW | 21rpm | 2560N.m | 135Kg | 27500N | 1.05 |
| KAF87DRN132ML4 | 63 | 5.5KW | 23rpm | 2280N.m | 135Kg | 27400N | 1.2 |
| KAF87DRN132ML4 | 56.64 | 5.5KW | 26rpm | 2050N.m | 135Kg | 27200N | 1.3 |
| KAF87DRN132ML4 | 49.16 | 5.5KW | 29rpm | 1780N.m | 135Kg | 26800N | 1.5 |
| KAF87DRN132ML4 | 44.02 | 5.5KW | 33rpm | 1600N.m | 135Kg | 26500N | 1.6 |
| KAF87DRN132ML4 | 36.52 | 5.5KW | 40rpm | 1320N.m | 135Kg | 25800N | 1.9 |
| KAF87DRN132ML4 | 31.39 | 5.5KW | 46rpm | 1140N.m | 135Kg | 25200N | 2.4 |
| KAF87DRN132ML4 | 27.88 | 5.5KW | 52rpm | 1010N.m | 135Kg | 24600N | 2.6 |

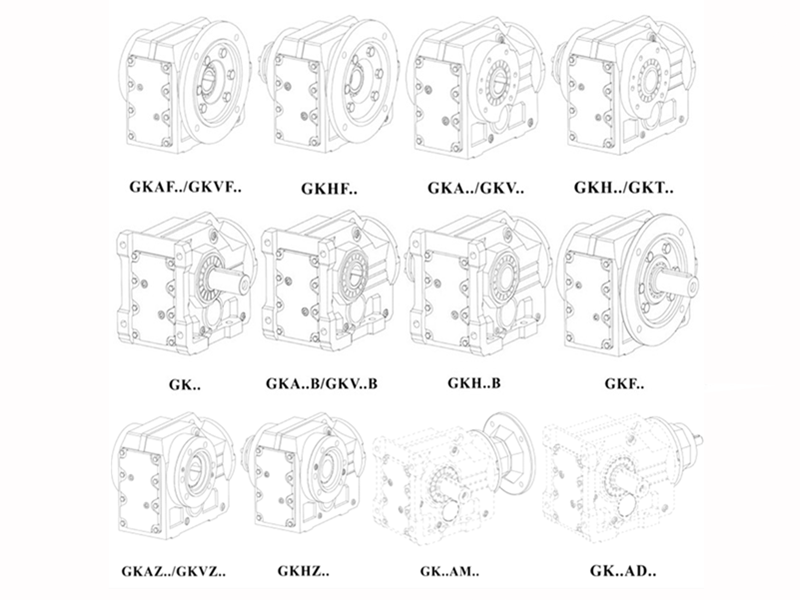

KAF87DRN132MC4減速機類型：
K..DR..底腳安裝斜齒輪—傘齒輪減速電機
KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA..DR..空心軸斜齒輪─傘齒輪減速電機
KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

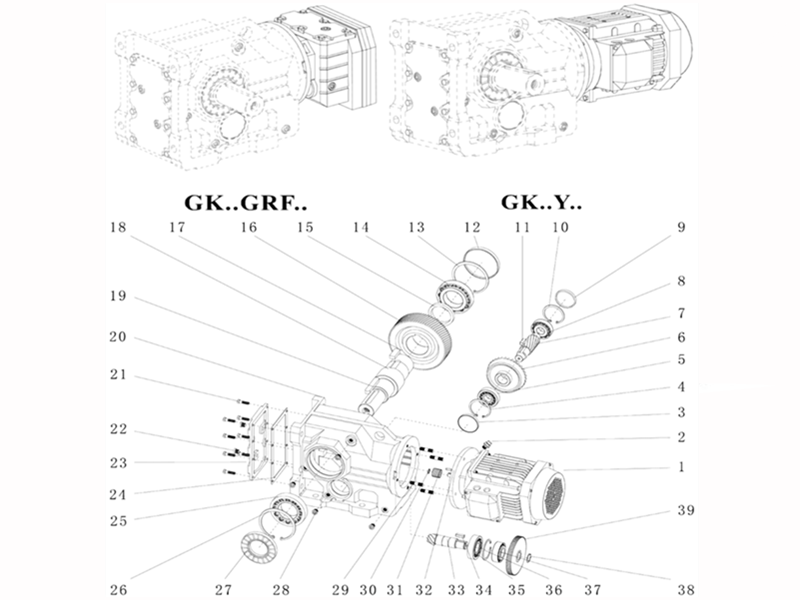

KAF87DRN132MC4減速機馬達安裝尺寸圖紙：
KAF87DRN132MC4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
大減速比減速機應用案例展示：
關鍵詞:KAF系列減速機_大減速比減速機與電機_大速比減速機電機一套_大減速比減速器_大比數減速機_大比數減速器_大速比減速器生產廠家
KAF系列減速機型號：KAF37減速機,KAF47減速機,KAF57減速機,KAF67減速機,KAF77減速機,KAF87減速機,KAF97減速機,KAF107減速機,KAF127減速機,KAF157減速機,KAF167減速機,KAF187減速機
KAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
