R107DM180LC4詳細信息

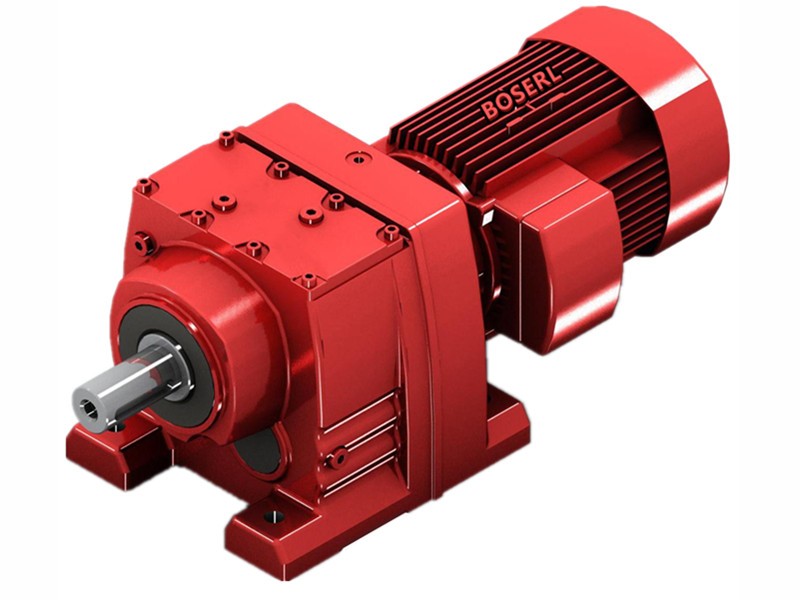

R107DM180LC4
訂購熱線：13360667204
關鍵詞：18.5KW馬達減速機_R107DM180LC4_R107DR180LC4
R107DM180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107DM180LC4 | 35.26 | 22kw | 41rpm | 5070N.m | 305kg | 4470N | 0.85 |
| R107DM180LC4 | 29.49 | 22kw | 50rpm | 4240N.m | 305kg | 20400N | 1 |
| R107DM180LC4 | 24.9 | 22kw | 59rpm | 3580N.m | 305kg | 20000N | 1.2 |
| R107DM180LC4 | 22.62 | 22kw | 65rpm | 3280N.m | 305kg | 19700N | 1.3 |
| R107DM180LC4 | 20.07 | 22kw | 73rpm | 2880N.m | 305kg | 19400N | 1.5 |
| R107DM180LC4 | 18.21 | 22kw | 80rpm | 2620N.m | 305kg | 19000N | 1.65 |
| R107DM180LC4 | 15.65 | 22kw | 93rpm | 2250N.m | 305kg | 18500N | 1.9 |
| R107DM180LC4 | 13.66 | 22kw | 107rpm | 1960N.m | 305kg | 18000N | 2.2 |
| R107DM180LC4 | 11.59 | 22kw | 126rpm | 1660N.m | 305kg | 17300N | 2.6 |
| R107DM180LC4 | 10.13 | 22kw | 144rpm | 1450N.m | 305kg | 16800N | 3 |
| R107DM180LC4 | 8.56 | 22kw | 170rpm | 1230N.m | 305kg | 16100N | 3.5 |
| R107DM180LC4 | 7.86 | 22kw | 186rpm | 1130N.m | 305kg | 16100N | 2.6 |
| R107DM180LC4 | 6.66 | 22kw | 219rpm | 950N.m | 305kg | 15400N | 3.1 |
| R107DM180LC4 | 5.82 | 22kw | 251rpm | 830N.m | 305kg | 14800N | 3.5 |
R107DR180LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107DR180LC4 | 35.26 | 22kw | 41rpm | 5070N.m | 305kg | 4470N | 0.85 |
| R107DR180LC4 | 29.49 | 22kw | 50rpm | 4240N.m | 305kg | 20400N | 1 |
| R107DR180LC4 | 24.9 | 22kw | 59rpm | 3580N.m | 305kg | 20000N | 1.2 |
| R107DR180LC4 | 22.62 | 22kw | 65rpm | 3280N.m | 305kg | 19700N | 1.3 |
| R107DR180LC4 | 20.07 | 22kw | 73rpm | 2880N.m | 305kg | 19400N | 1.5 |
| R107DR180LC4 | 18.21 | 22kw | 80rpm | 2620N.m | 305kg | 19000N | 1.65 |
| R107DR180LC4 | 15.65 | 22kw | 93rpm | 2250N.m | 305kg | 18500N | 1.9 |
| R107DR180LC4 | 13.66 | 22kw | 107rpm | 1960N.m | 305kg | 18000N | 2.2 |
| R107DR180LC4 | 11.59 | 22kw | 126rpm | 1660N.m | 305kg | 17300N | 2.6 |
| R107DR180LC4 | 10.13 | 22kw | 144rpm | 1450N.m | 305kg | 16800N | 3 |
| R107DR180LC4 | 8.56 | 22kw | 170rpm | 1230N.m | 305kg | 16100N | 3.5 |
| R107DR180LC4 | 7.86 | 22kw | 186rpm | 1130N.m | 305kg | 16100N | 2.6 |
| R107DR180LC4 | 6.66 | 22kw | 219rpm | 950N.m | 305kg | 15400N | 3.1 |
| R107DR180LC4 | 5.82 | 22kw | 251rpm | 830N.m | 305kg | 14800N | 3.5 |
R107DM180LC4減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機
R107DM180LC4減速機馬達安裝尺寸圖紙
R107DM180LC4減速機生產工廠展示：看廠請?zhí)崆叭祛A約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
